| White body, proudly made in France!

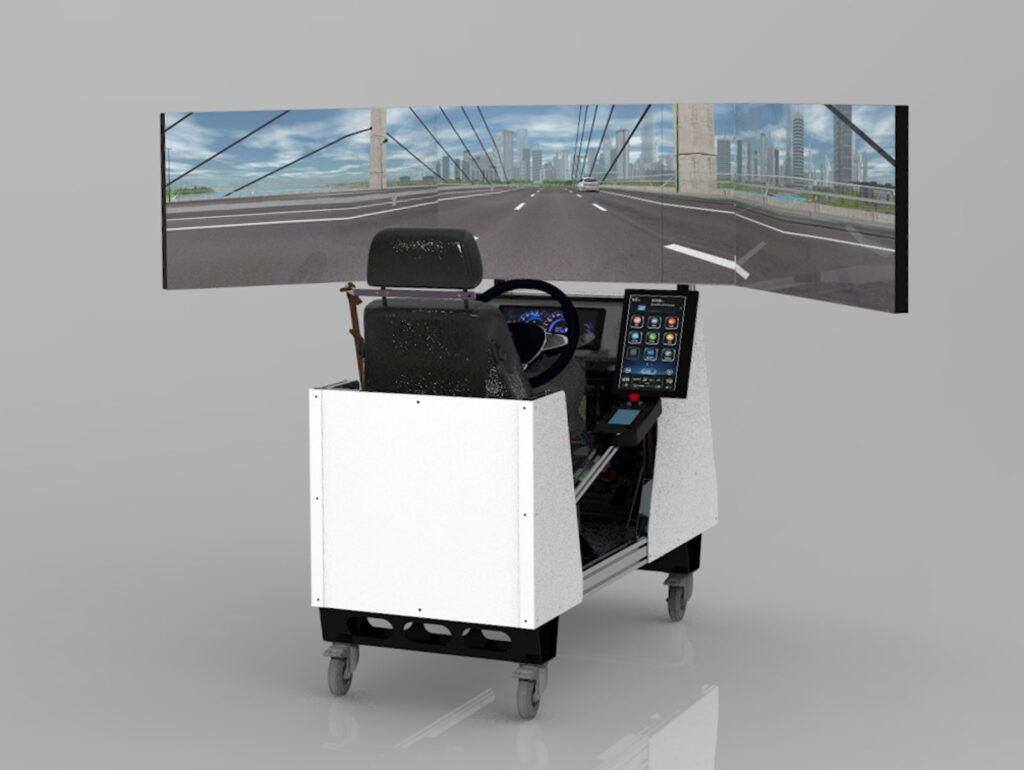

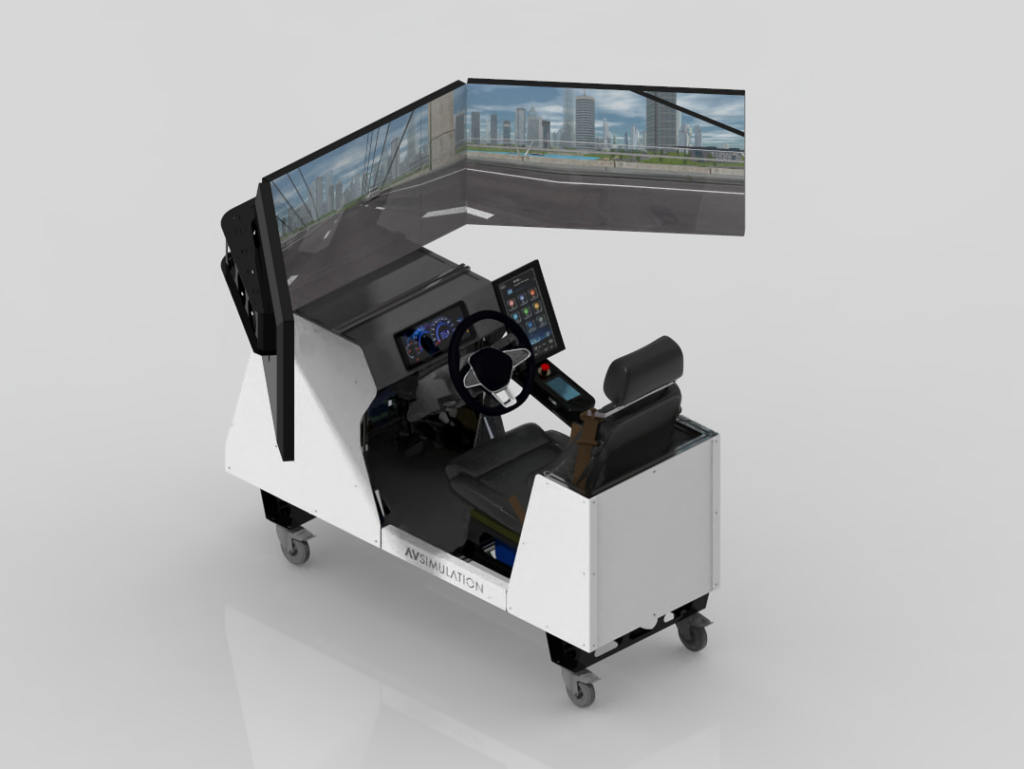

Modular cockpit
Realistic driving position. Available in LHD and RHD configurations
|
| Original Recaro seat with a real seat belt
Adjustable longitudinal position and back rest angle
|

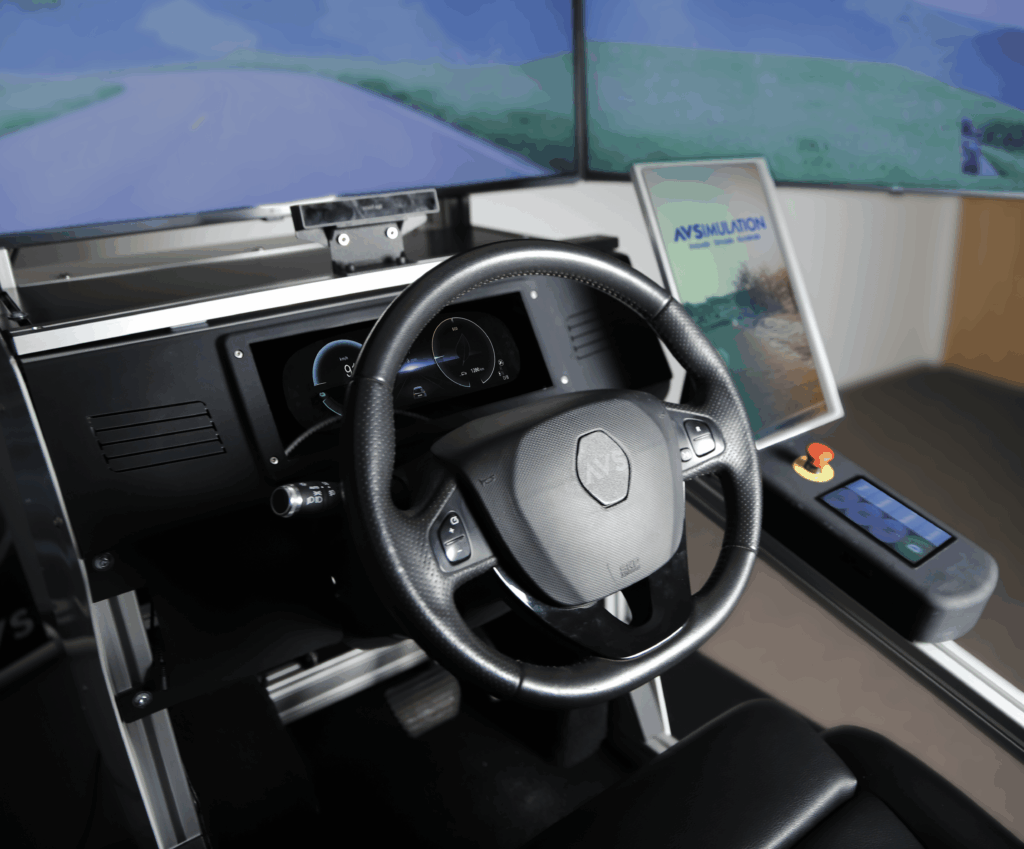

| Real steering wheel, adjustable steering column (angle and depth) and direct drive motor (up to 10 N.m)
Buttons with customizable actions in SCANeR. Steering levers connected to SCANeR (headlights, wipers) |
| Brake and throttle pedals with passive force feedback. Real pedal set, instrumented by AVSimulation
|
| Full HD capacitive touch screen, customizable
|
| Touch screen with the standard mode: P-R-N-D buttons, Engine start and Parking brake
The graphical interface and the actions in SCANeR can be customized by the user |
| Integrated 5.1 sound system (5 speakers + 1 subwoofer) |
| 3x 43-inch LED screens (4K)
Refresh rate: up to 120Hz |
| 1x Supervision PC & 3x Image Generation PCs Ultra-high performance workstations
Latest generation CPU and GPU certified configuration for SCANeR studio
|
| The cockpit is pre-assembled and tested by AVSimulation (the screen mount is assembled by the client at reception)
|
| Cockpit only (LxWxH): 1800 x 2300 x 1650 mm, approx. 100 kg
Computer rack (LxWxH): 930 x 600 x 1200 mm, approx. 115 kg
Supervision console (LxWxH): 700 x 750 x 1250 mm, 10 kg
Recommended floor space: 2,5 x 3 m |
| 12 months from shipping (or delivery if ordered as an option) (“Standard” maintenance service level for SCANeR)
|
| |
