SimEASY

SimEASY

DISCOVER SimEASY

Affordable and Versatile

The SimEASY driving simulator is an affordable «out of the box» product which will enable the users to benefit from the SCANeR studio versatility to address a wide range of use cases.

Dynamic Upgrade Available

Integrated Design

Expertise and Compatibility

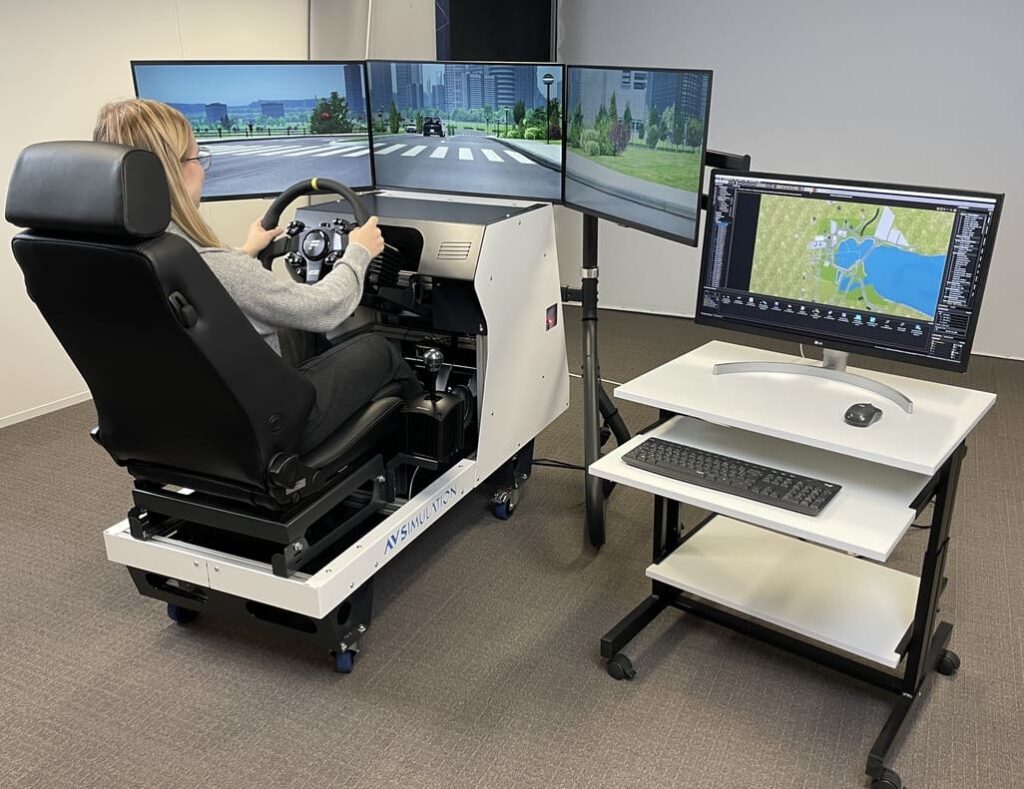

SimEASY is a compact driving simulator targeting the non-racing-oriented studies. It is affordable, realistic and can easily be moved by one person. When choosing SimEASY you do not need any additional software or hardware.

It is a turn-key simulation solution where all the hardware and software is already installed and configured. Each component has been selected by AVSimulation engineers to provide the best possible quality. Last but not least, SimEASY is CE certified and compliant with other simulation software and is available in left and right-hand drive steering configurations.

As hundreds of other simulators already deployed worldwide, it is powered by the SCANeR studio simulation software platform.

Features

Items	Descriptions
Chassis	Modular cockpit with a realistic driving position Available in LHD and RHD configurations
Visual system	3 x 32 ’’ Full HD LED monitors Foldable display support for transport
Virtual cluster	Can be displayed in the front view monitor
Steering wheel	Active force feedback system (8 N.m nominal torque), 900° max. rotation, adjustable position in angle and depth
Controls	Paddle shifters Configuration buttons on the steering wheel
Seat	Adjustments: fore and aft position, backrest angle Seat belt included
Pedals	Brake and throttle, with manually adjustable passive force feedback
Sound system	2.1 system
Computer system	1 professional workstation with Nvidia graphic board (SCANeR studio certified configuration)
Power supply	SimEASY : 100-230V AC 50-60Hz, max. 2kW SimEASY+ : 100-230V AC 50-60Hz, max. 3kW
Included software licenses	SimEASY : 1 Foundation Pack (1 visual,1 driver) SimEASY+ : 1 Foundation Pack (1 visual,1 driver) + 1x Simulators Packs (3 DoF)
Motion system (only on SimEASY+)	Movements: roll, pitch and elevation Rendered frequencies: from 0 to 100 Hz Maximum acceleration: 1G

Use cases

Human Factor

Evaluate driver performance, HMI, ADAS, and more.

SiL, MiL, HiL Testing

Connect to test benches for software testing

Multi-Simulation

Connect multiple SimEASY for actor-based simulations.

Fine-Tuning Scenarios

Save time and money by fine-tuning scenarios on SimEASY

Experience the SimEASY Advantage

Affordable, versatile, and efficient driving simulation solution!
